Product Introduction

Reactor is a kind of atmospheric pressure or pressure vessel that is applied to chemical, petroleum, rubber, pesticide, dyestuff, medicine, food and other industries. Its used to complete the process of vulcanization, nitration, hydrogenation, alkylation, polymerization, condensation etc.

J.H. Equipment offers a broad range of reactors and accessories manufactured from glass lined carbon steel, glass lined stainless steel and stainless steel, borosilicate glass as well as PTFE lined steel.

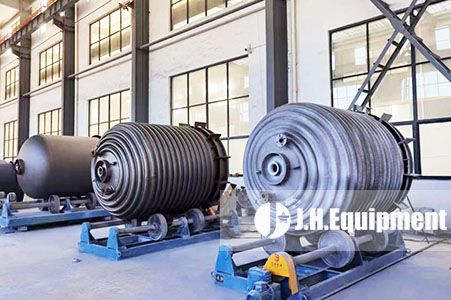

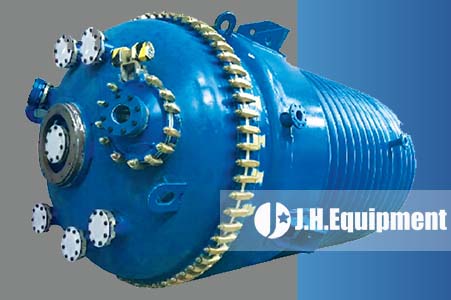

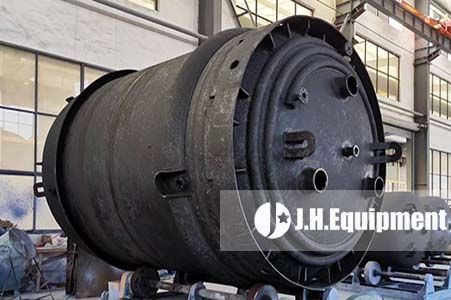

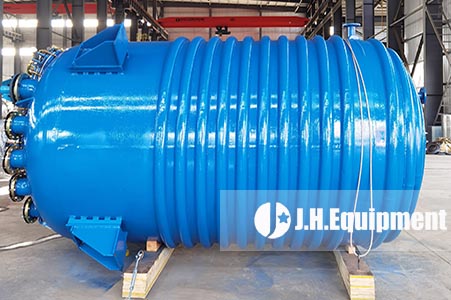

The J.H. Glass-Lined Reactors are made from a material that is called Glass-Lined Steel which is of construction that combines the strength of steel with the corrosion resistance of glass. It is made by fusing a thin layer of glass to steel at high temperature, creating a strong, chemically bonded base coat, upon which subsequent layers of corrosion-resistant glass are fused.

【Production Capacity】: 5-50,000L
【Optional Structures】: Open type, close type
【Agitator Types】: Anchor, Paddle, 3-Blades Impeller, Combined
【Application Industries】: Applicable for most acidic corrosive environment that existed in chemical, pharmaceutical, biological, pesticide, dyestuff industries etc.
【Application Mediums】: Various organic and inorganic acids such as sulfuric acid, nitric acid, but not recommended to be used for hydrofluoric acid and hot phosphoric acid with high concentration
.

1 2 3

Free Consultation Purchasing Hotline:+86-533-2727685

Product Advantages

* Wide application due to broad range of corrosion resistance.
Glass-lining of J.H.Equipment has perfect property of corrosion-resistant against various organic and inorganice acids, weak alkaline except hydrofluoric acid and hot phosphoric acid with high concentration.
* Essentially inert-selected where super-high purity is required, will not affect product flavor or color.
* Excellent anti-stick property, no product adherence, easy cleanability and product changeover.
* High working temperature and pressure available

  • p114
  • p115
Working Principle

The glass-lined agitator rotates towards a fixed direction driven by the power unit. During the rotation, it drives materials to rotate radially or axially. Materials inside the reactor are in both axial and circular motion, generating several forms of mixing such as shearing, mixing and diffusion stirring. Thus the materials can be effectively rapidly stirred and mixed.
Heating or cooling liquids will be pumped into reactor jacket as the heating or cooling source. The purpose of heating and cooling is to provide suitable temperature for production(Max.220! for glass-lined reactors), to fulfill reacting requirement. Furthermore, cooling is used for decreasing the temperature so to pack finished materials.
According to the reacting conditions, sometimes needs suitable pressure( either positive, negative or ATM) to meet the requirement, and inert gas for protection.
Condensing unit (distillation column, vertical or horizontal condenser, water separator etc) can be used with a vacuum system, the purpose is to collect/reflux solvents which volatilize because of heating.
Heating system includes water heater, oil heater, boiler etc.
Cooling system includes water tank, cooling towers, chillers, etc.

Technical Parameter


Model (Open Type) KF50 KF100 KF200 KF300 KF500 KF1000 KF2000 KF3000 KF4000 KF5000
Nominal Capacity (L) 50 100 200 300 500 1000 2000 3000 4000 5000
Full Capacity (L) 70 127 247 369 588 1245 2179 3380 4348 5435
Heat Exchange Area (m2) 0.54 0.84 1.5 1.9 2.64 4.5 7.2 9.3 11.7 13.4
Shell I.D. (mm) 500 600 700 800 900 1200 1300 1600 1600 1750
Jacket I.D.(mm) 600 700 800 900 1000 1300 1450 1750 1750 1900
Reference Weight (kgs) 380 450 710 950 1180 1900 2700 3700 4200 5300



Model  (Close Type)  FF3000 FF4000 FF5000 FF6300 FF8000 FF10000 FF12500 FF16000 FF20000 FF30000
Nominal Capacity (L) 3000 4000 5000 6300 8000 10000 12500 16000 20000 30000
Full Capacity (L) 3811 4780 6011 6866 9060 11674 13651 17446 21790 33500
Heat Exchange Area (m2) 9.74 12.16 14.89 19.89 18.36 21.35 24.89 29.48 34.04 45.36
Shell I.D. (mm) 1600 1600 1750 1750 2000 2000 2000 2200 2200 2600
Jacket I.D.(mm) 1750 1750 1900 1900 2200 2200 2200 2400 2400 2800
Reference Weight (kgs) 3600 4030 5200 5550 7600 8900 10300 14300 14700 22200
