Product Introduction

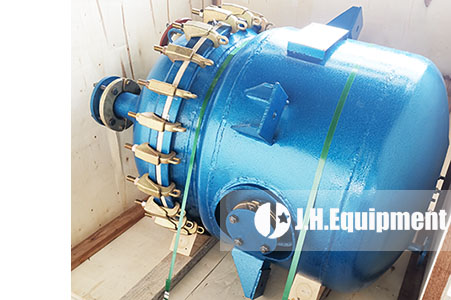

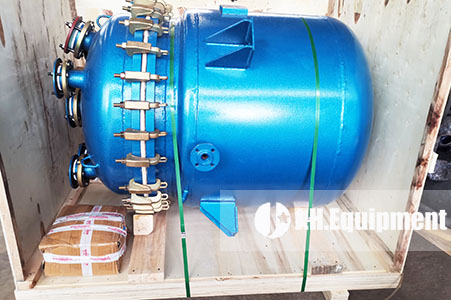

Glass-lined distillation vessel is specially designed for distillation process that existed in corrosive environment. It has a jacket which is similar with reactor body. Heating water or oil will make circulation inside jacket so as to provide a steady heating source, while mediums inside vessel will be distilled.
Condensing unit (distillation column, vertical or horizontal condenser, water separator etc) is usually used together, the purpose is to collect/reflux solvents which volatilize because of heating.

【Production Capacity】: 300-3,000L
【Application Industries】: Applicable for most acidic corrosive environment that existed in chemical, pharmaceutical, biological, pesticide, dyestuff industries etc.
【Application Mediums】: Various organic and inorganic acids such as sulfuric acid, nitric acid, but not recommended to be used for hydrofluoric acid and hot phosphoric acid with high concentration.

1

Free Consultation Purchasing Hotline:+86-533-2727685

Product Advantages

* High Performance Glass-lining
J.H. Equipment adopts the best glass-lining to all glass-lined equipment and non-destructive test, hydraulicand high voltage test are held during the whole production process.

* More Efficient and Steady Heating Source
J.H. Equipment can provide you efficient oil stove with low energy loss during the distillation process. The other option is to install first quality heating elements on the bottom.

  • p132
Working Principle

Heating source inside of jacket will heat the materials inside vessel up and when it reaches the boiling point, certain compound substance will be separated from the liquid mixer because of selecive evaporation and condensation.

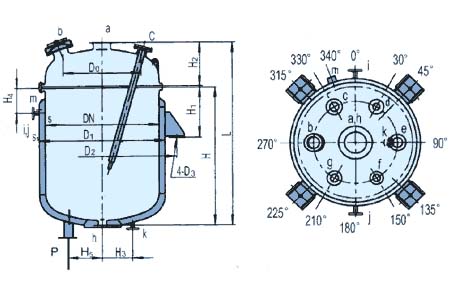

Technical Parameter

Standard Model  ZL300 ZL500 ZL1000 ZL1500 ZL2000 ZL3000
Nominal Capacity (L) 300 500 1000 1500 2000 3000
Full Capacity (L) 369 588 1250 1720 2280 3380
Heat Exchange Area (m2) 1.75 2.27 4.54 5.8 6.42 9.3
Shell I.D. (mm) 800 900 1200 1300 1600 1600
Jacket I.D.(mm) 900 1000 1300 1450 1750 1750
Reference Weight (kgs) 380 450 710 950 1180 1900
