Glass Distillation Unit over GLR

Product Introduction Product Advantages Working Principle Technical Parameter

Product Introduction

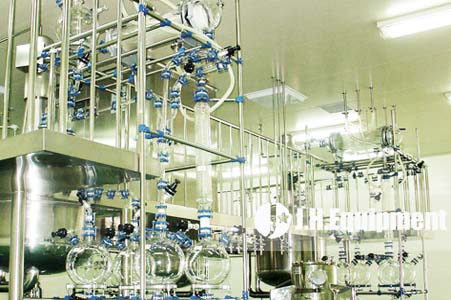

This glass distillation unit can be installed easily over glass lined reactor. It consists of glass distillation columns, glass pipes and fittings, glass shell and tube condenser, glass coil condenser as well as receivers.

【Production Capacity】: Max.GLR Volume: 20,000L
【Application Industries】: Applicable for most acidic corrosive environment that existed in chemical, pharmaceutical, biological, pesticide, dyestuff industries etc.
【Application Mediums】: Heat sensitive mediums

Free Consultation Purchasing Hotline：+86-533-2727685

Product Advantages

The J.H. glass distillation unit can be easily assembled over glass lined reactor. The flanges are connected in perfect without leakage. Frame support can be made as polished SS304 or nickel coated carbon steel.

Working Principle

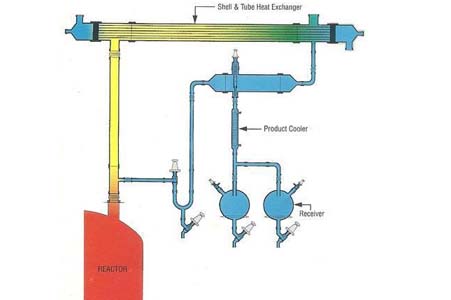

Vapors from glass lined reactor during reaction will go through the glass distillation columns, glass pipes, main glass condenser and secondary glass condenser, and final product was collected by glass receivers.

Technical Parameter

GLR Volume (L)	Glass Column Dia. (mm)	Glass Column Length (mm)	Total Condensing Area (m²)	Glass Receiver Volume (L)
500	80	1000	3	50
1000	100	1500	5	100
3000	150	2000	5	150
5000	200	2000	8	200
10000	260	2500	10	300
